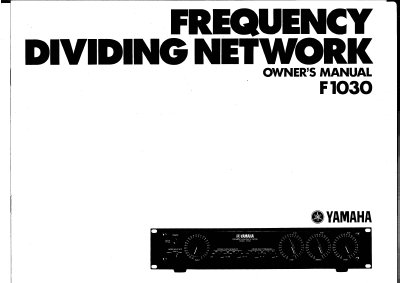

The Yamaha F1030 is a professional electronic crossover (frequency dividing network) designed to operate at lower line levels between mixers and power amplifiers. It features five filters derived from three high-pass and two low-pass circuits to divide the sound spectrum into Low, Middle, and High outputs for driving multiple speakers or amplifier channels.
| Input Impedance | 10K ohms |
|---|---|
| Output Drive Level | +24dBm (12.3V) |
| Peak Indicator Threshold | +14dB (3.88 volts) |
The unit allows selection between 12dB/octave and 18dB/octave using four internal switches.
The unit uses transformer-coupled XLR connectors for balanced lines and standard phone jacks for unbalanced equipment.
