This document is a speaker installation manual that introduces the installation methods of the speaker, including pre-installation preparation, installation process and precautions

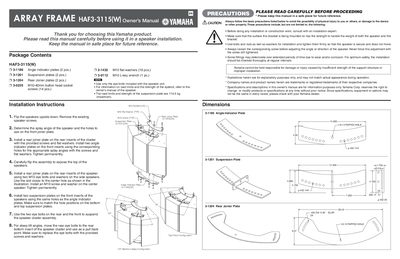

This owner's manual provides installation instructions for the Yamaha HAF3-3115(W) Array Frame. It details the package contents, which include angle indicator plates, suspension plates, joiner plates, washers, a wrench, and eye bolts.
The document outlines safety precautions regarding structural strength and proper tightening of hardware. Installation steps cover flipping speakers upside down, installing rear joiner plates with screws or M10 eye bolts depending on the configuration, attaching angle indicator plates for splay angles, and mounting suspension plates to complete the cluster assembly.
The load limits and strength of the suspension plate are 114.5 kg.
The manual specifies a 120° Maximum Splay Configuration.
