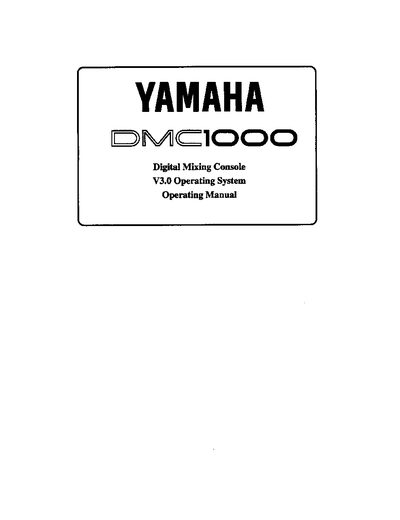

This document is the operating manual for the Yamaha DMC1000 Digital Mixing Console running V3.0 of the Operating System. It provides comprehensive instructions on safety precautions, installation, and initial settings required before using the device.
The guide details the operation of various console functions including Input Channels, Stereo Channels, Bus Outputs, Monitor channels, Auxiliary Sends, and Internal Effects. It also covers advanced features such as floppy disk operations for scene memory storage and recall, MIDI integration, video edit controllers, and system maintenance procedures like calibration.
| Operating System Version | V3.0 |
|---|---|
| Battery Backup Life | about 5 years |
| Operating Temperature Range | 0°C and 35°C (32°F and 95°F) |
The unit includes a crossed 25-pin D-sub cable, straight 25-pin D-sub cable, YDC 8-pin DIN cable, operating system disk, blank floppy disk, dummy disk, and MDC64 RAM card.
It is recommended to clean them about once every six months.
The battery should be replaced if the voltage reading falls below 2.5 Volt.
