SA503TVL CONTROL SYSTEM

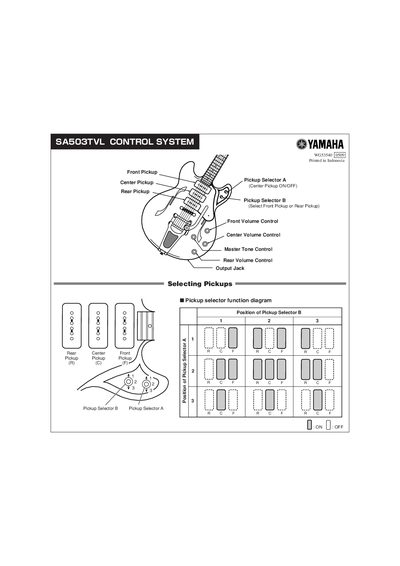

The document displays the front panel layout of the Yamaha SAS503TVL control system. It illustrates the positions of various controls including Front Pickup, Center Pickup, Rear Pickup, and their respective selectors (A and B).
It allows for the selection of the center pickup channel, with an ON/OFF option.
The Rear Pickup is selected using Pickup Selector B to choose between Front or Rear.
