This is a Yamaha electric acoustic guitar owner's manual.

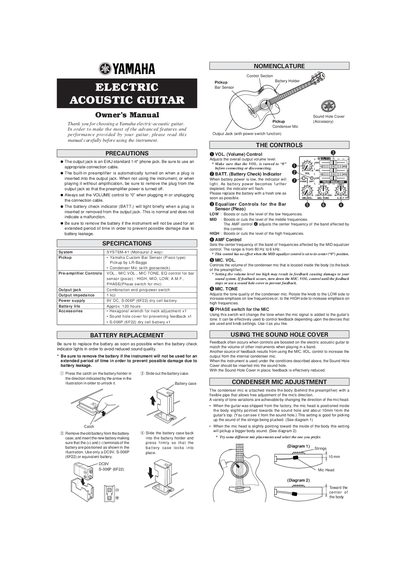

This document is the owner's manual for the Yamaha SYSTEM-41 electric-acoustic guitar. It provides instructions on using the instrument's preamplifier system, which includes a pickup, a bar sensor, and an internal condenser microphone. The guide details how to operate various controls such as volume, equalizer settings (HIGH, MID, LOW), and phase switches.
| System Type | SYSTEM-41 (Monaural 2 way) |
|---|---|
| Pickup System | Yamaha Custom Bar Sensor + LR-Baggs Pickup |
| Microphone Type | Condenser Mic (with gooseneck) |
| Power Supply | 9V DC, S-006P (6F22) dry cell battery |
| Battery Life | Approx. 120 hours |
When the battery power is low, the BATT. indicator will light; as it depletes further, the indicator will flash.
You can use a sound hole cover or turn down the MIC. VOL. control until the feedback stops.
