STK12C68-M is a fast static RAM with access times of 40, 45, and 55ns. It features automatic STORE and RECALL functions, supporting hardware or software initiated operations. The product operates at a single 5V±10% voltage and is available in multiple standard packages.

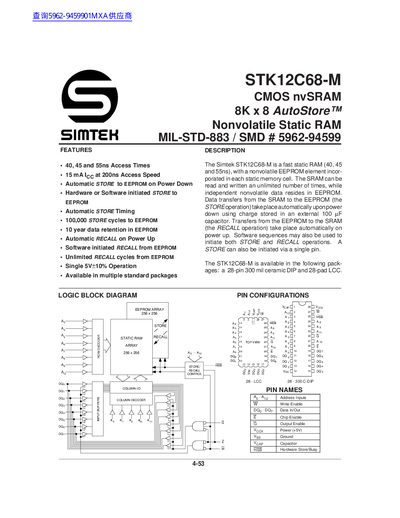

The Simtek STK12C68-M is a CMOS nvSRAM device featuring 8K x 8 bits of static RAM with an incorporated nonvolatile EEPROM element. It supports automatic STORE to EEPROM on power down and automatic RECALL from EEPROM on power up, ensuring data retention for up to 10 years. The device operates on a single 5V+10% supply and is available in 28-pin ceramic DIP and 28-pad LCC packages.
| Memory Capacity | 8K x 8 |
|---|---|
| Access Times | 40, 45 and 55ns |
| Data Retention | 10 year |
| STORE Cycles | 100,000 |
| Operating Voltage | 5V+10% |
| Operating Temperature | 55 to 125 °C |
| Packages | 28-pin 300 mil ceramic DIP and 28-pad LCC |
No, it automatically stores data to EEPROM upon power down and recalls it upon power up.
The device provides 10 years of data retention in EEPROM.
Yes, a STORE can be initiated via a single pin known as HSB.
