STK10C68 is a non-volatile storage device from the United States, with the model number 5962-9305605MXA. It supports 5V power and has a working temperature range of -55°C to 125°C.

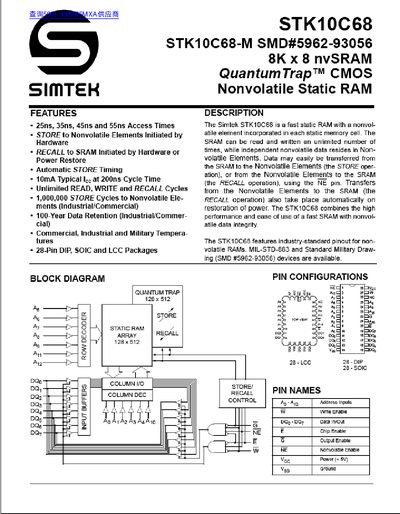

The Simtek STK10C68 is a fast static RAM featuring a nonvolatile element in each memory cell. It allows unlimited read and write cycles for the SRAM portion, while data can be transferred to or from independent Nonvolatile Elements via hardware-initiated STORE or RECALL operations. The device also performs an automatic RECALL upon power restoration.
| Capacity | 8K x 8 |
|---|---|
| Access Times | 25ns, 35ns, 45ns and 55ns |
| Data Retention | 100-Year |
| Operating Temperature Range | -55°C to 125°C |
| Supply Voltage | +5V |
| Package Types | 28-Pin DIP, SOIC and LCC |
Data transfers automatically from the Nonvolatile Elements back to the SRAM upon restoration of power.
The device supports 1,000,000 STORE cycles to Nonvolatile Elements for Industrial and Commercial applications.
The Power-up RECALL duration is 550 microseconds.
