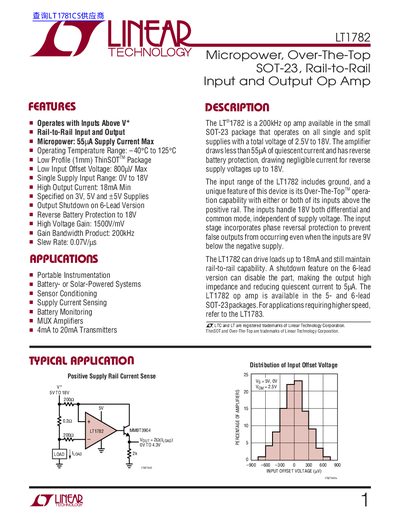

This document introduces the features of the LT1782 op amp, including operating voltage range, input range, output range, power consumption, static current, package, etc.
The LT1782 is a 200kHz operational amplifier available in small SOT-23 packages that operates on single or split supplies with a total voltage of 2.5V to 18V. It features rail-to-rail input and output, allowing it to drive loads up to 18mA while maintaining full swing capability.
| Supply Current (Max) | 55uA |
|---|---|
| Operating Temperature Range | -40°C to 125°C |
| Low Input Offset Voltage (Max) | 800uV |
| Single Supply Input Range | OV to 18V |
| High Output Current (Min) | 18mA |
| Gain Bandwidth Product | 200kHz |
| Slew Rate | 0.07V/us |
The device draws a maximum of 55uA of supply current.
The LT1782H operates from -40°C to 125°C.
The maximum input offset voltage is 800uV.
