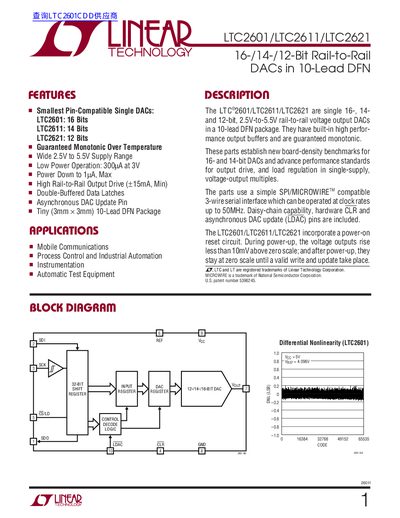

This data sheet provides detailed information on the LTC2601/LTC2611/LTC2621 16-, 14- and 12-bit, 2.5V to 5.5V single-supply, single DACs that can be used individually or in cascaded applications. These devices feature built-in high performance output buffers and are guaranteed monotonic.
The LTC2601, LTC2611, and LTC2621 are single 16-, 14-, and 12-bit, 2.5V-to-5.5V rail-to-rail voltage output DACs in a 10-lead DFN package. They feature built-in high-performance output buffers and are guaranteed monotonic over temperature. These devices use a simple SPI/MICROWIRE compatible 3-wire serial interface and include daisy-chain capability, hardware CLR, and asynchronous DAC update pins.
| Resolution | 16 Bits (LTC2601), 14 Bits (LTC2611), 12 Bits (LTC2621) |
|---|---|
| Supply Voltage Range | 2.5V to 5.5V |
| Power Down Current (Vcc = 5V) | 1 pA |
| Output Drive | High Rail-to-Rail Output Drive (+15mA, Min) |
| Operating Temperature Range (Industrial) | -40°C to 85°C |
| Package Type | 10-Lead DFN |
The LTC2601 has a resolution of 16 bits.
The devices operate with a supply voltage range of 2.5V to 5.5V.
Yes, the DACs are guaranteed monotonic over temperature.
