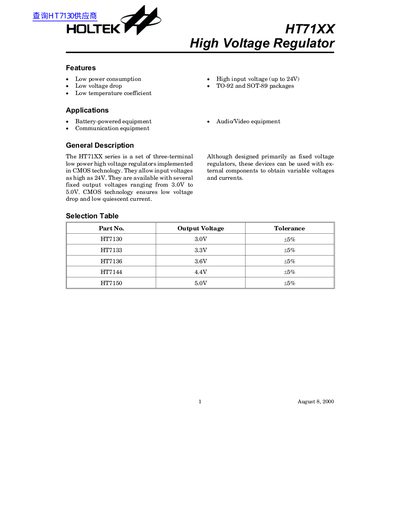

The HT71XX series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with ex- ternal components to obtain variable voltages and currents.
The Holtek HT71XX series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. These devices allow input voltages as high as 24V and are available with several fixed output voltages ranging from 3.0V to 5.0V. The series is designed for applications such as battery-powered equipment and communication equipment, offering low power consumption and low voltage drop.
| Input Voltage | Up to 24V |
|---|---|
| Output Voltage Range | 3.0V to 5.0V |
| Output Current | 20 to 30 mA |
| Load Regulation | 60 to 100 mV |
| Current Consumption | 3.0 to 9 pA |
| Temperature Coefficient | 40.45 mV/°C |
The device allows input voltages as high as 24V.
The series is available with fixed output voltages ranging from 3.0V to 5.0V.
The typical output current is 30 mA.
