HT48R06A-1 is an 8-bit OTP microcontroller designed for multiple I/O product applications. It features low power consumption and electric programming capability, making it suitable for product development.

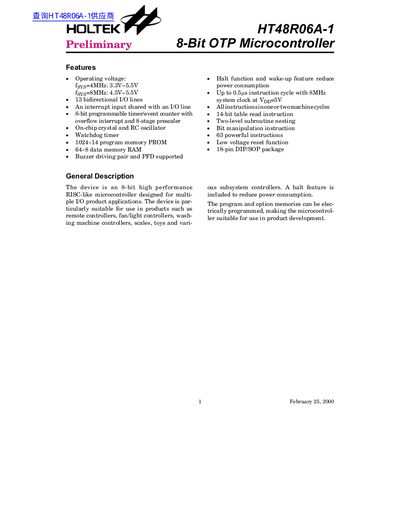

The Holtek HT48R06A-1 is an 8-bit high performance RISC-like microcontroller designed for multiple I/O product applications. It features a halt function and wake-up capability to reduce power consumption, making it suitable for devices like remote controllers, fan/light controllers, washing machine controllers, scales, and toys.
The device includes 1024x14 program memory PROM and 64x8 data memory RAM. Key peripherals include an 8-bit programmable timer/event counter with overflow interrupt, a watchdog timer, and on-chip crystal and RC oscillator support. It operates at up to 8MHz system clock speed.
| Operating Voltage (4MHz) | 3.3V ~ 5.5V |
|---|---|
| Operating Voltage (8MHz) | 4.5V ~ 5.5V |
| Program Memory Size | 1024x14 bits |
| Data Memory Size | 64x8 bits |
| I/O Lines | 18 bidirectional I/O lines |
| Max System Clock (5V) | 4000 kHz |
The operating voltage is between 3.3V and 5.5V when the system clock is 4MHz.
The maximum operating current is 4 mA when using a crystal oscillator at 5V.
