This document describes the features and characteristics of the SK52-B to SK510-B model products. These products are housed in a plastic package and have a UL 94V-O flammability rating. They are suitable for surface mounted applications and exceed the environmental standards of MIL-S-19500 / 228. The products have low leakage current. The mechanical data includes information about the case material, solder plating on the terminals, polarity, mounting position, and weight.

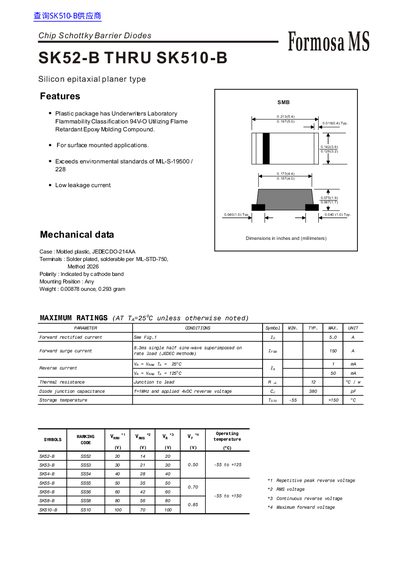

This datasheet covers Formosa silicon epitaxial planar Schottky barrier diodes, specifically models SK52-B through SK510-B. The components are designed for surface-mounted applications and utilize a plastic package with Underwriters Laboratory Flammability Classification 94V-0.
| Forward rectified current | 5.0 A |
|---|---|
| Forward surge current | 150 A |
| Reverse current | 50 mA |
| Thermal resistance Junction to lead | 12 °C/W |
| Diode junction capacitance | 380 pF |
| Storage temperature | -55 to +150 °C |
| Package type | JEDEC DO-214AA |
The document covers silicon epitaxial planar type chip Schottky barrier diodes.
The maximum forward rectified current is 5.0 A.
The storage temperature range is -55 to +150 °C.
