MBRA120T3 - MBRA1100T3 is a schottky diode produced by Formosa MS, which has plastic package and low leakage current.

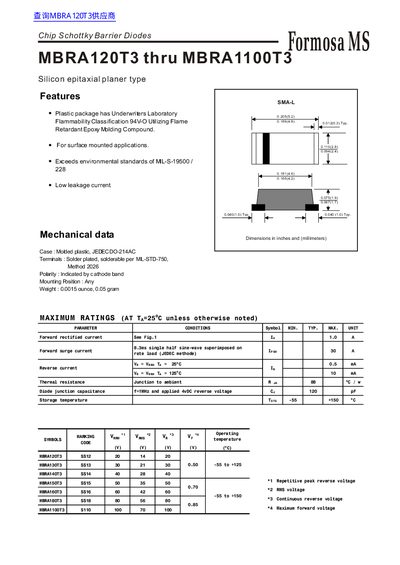

This document is a technical datasheet for the Formosa MS brand of Chip Schottky Barrier Diodes. It covers the product range from model MBRA120T3 to MBRA1100T3, which are silicon epitaxial planer type devices designed for surface-mounted applications.
The datasheet provides mechanical data indicating a plastic package with Underwriters Laboratory Flammability Classification 94V-0 and JEDEC DO-214AG case style. It lists maximum ratings such as forward rectified current, reverse voltage, and thermal resistance, along with typical characteristic curves for forward current, junction capacitance, and reverse leakage.
| Package Type | JEDEC DO-214AG |
|---|---|
| Flammability Classification | UL 94V-0 |
| Forward Rectified Current (Ip) | 1.0 A |
| Reverse Leakage Current (Ta=25°C) | 0.5 mA |
| Storage Temperature Range | -55 to +150 °C |
The marking code is 'ssi2'.
The typical forward voltage is 0.50 V.
The maximum reverse current is 10 mA.
