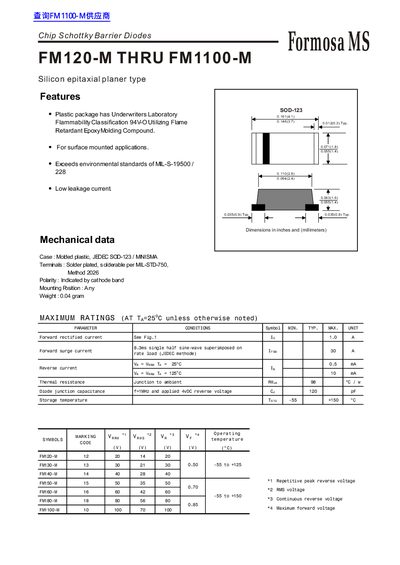

FM120-M THRU FM1100-M are low voltage Schottky diodes, with UL94V-O flammability rating, meet MIL-S-19500 / 228 environmental standards, small volume, light weight, with low leakage current.
The FM120-M through FM1100-M series are silicon epitaxial planar Schottky barrier diodes offered in a molded‑plastic SOD‑123 package. The devices are UL‑94V‑0 flame‑retardant and designed for surface‑mount applications, with a typical weight of 0.04 g.
Maximum ratings include a forward rectified current of 1.0 A, a forward surge current of 30 A, and reverse leakage currents of 0.5 mA at 25 °C and 10 mA at 125 °C. Thermal resistance is 98 °C/W, junction capacitance is about 120 pF at 1 MHz, and the storage temperature range spans –55 °C to +150 °C. Characteristic curves for forward current derating, reverse voltage, and junction capacitance are provided.
| Package type | Molded plastic, JEDEC SOD‑123 |
|---|---|
| Reverse current at 25 °C | 0.5 mA |
| Reverse current at 125 °C | 10 mA |
| Thermal resistance (junction‑to‑ambient) | 98 °C/W |
| Storage temperature range | -55 °C to +150 °C |
| Weight | 0.04 g |
They can be stored from –55 °C up to +150 °C.
