This document describes the features and characteristics of the chip silicon rectifiers FM4001 to FM4007. They are glass passivated type products with a plastic package. The rectifiers have a UL Flammability Classification of 94V-O and are made of a flame retardant epoxy molding compound. They are designed for surface mounted applications and exceed the environmental standards of MIL-S-19500 / 228. The rectifiers have low leakage current.

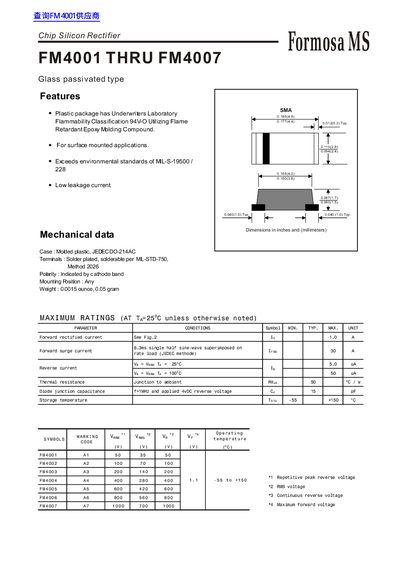

This document provides technical specifications for the Formosa FM4001 through FM4007 series of silicon rectifiers. These components are glass passivated type devices designed for surface-mounted applications in an SMA plastic package.
The datasheet details mechanical data, including dimensions and terminal plating, alongside maximum electrical ratings such as forward rectified current and reverse voltage. It also includes characteristic curves illustrating typical performance under various conditions.
| Package Type | SMA Plastic package |
|---|---|
| Case Style | JEDEC DO-214AG |
| Forward Rectified Current (FM4007) | 1.0 A |
| Reverse Current (Ta=25°C) | 5.0 uA |
| Thermal Resistance Junction to Ambient | 50 °C/W |
The maximum forward rectified current is rated at 1.0 A.
The storage temperature range is from -55 to +150 °C.
The maximum forward voltage for model FM4007 is 1.1 V.
