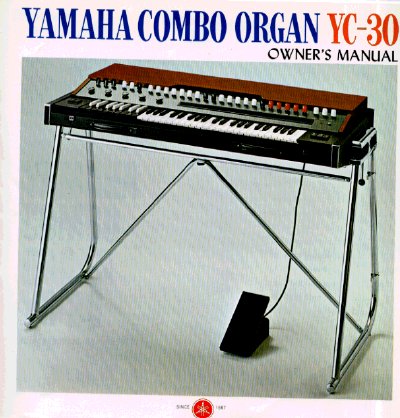

This document serves as the owner's manual for the Yamaha YC-30 Combo Organ. It covers the assembly process, including setting up the legs and adjusting the keyboard inclination. The guide details the identification and function of various controls, such as tone levers, effect selectors, and voice presets, explaining features like the exclusive Touch Vibrato and variable speed marimba effects.
| Manual Keyboard | 61 keys C~c4 |
|---|---|
| Manual Bass | 17 keys Cve |
| Power Consumption | 25W AC 50~60 Hz |
| Width | 111 cm (43") |
| Depth | 62 cm (24") |
| Height | 92 cm (36") |
Loosen the two levers at both sides of the unit, adjust the keyboard to the desired angle, and then tighten the levers to lock it in place.
Check that the line cord is plugged into a live AC outlet, ensure the power switch is on, check input cords for loose connections, and verify volume controls are set correctly.
No, you should use a damp cloth. Never apply household cleaners or solvents such as alcohol as they may damage the plastic materials.
