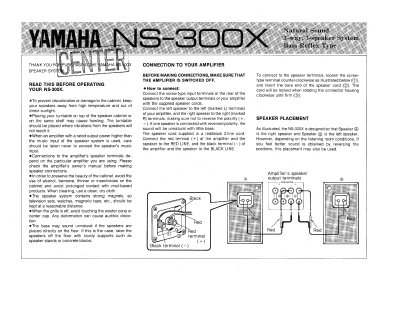

This manual provides instructions for the Yamaha NS-300X speaker system, including safety precautions, connection guidelines to amplifiers, and proper speaker placement to ensure optimal sound quality. It details how to attach the front grille and warns against placing turntables on the cabinet to prevent vibrations.
| Type | 3-way, 3-speaker Bass Reflex Speaker |
|---|---|
| Woofer Size | 27 cm (10-5/8") |
| Midrange Size | 6 cm (2-3/8) |
| Tweeter Size | 3 cm (1-3/16") |
| Nominal Input | 100W |
| Music Input | 200W |
| Efficiency | 91 dBWim |
| Frequency Response | 32 - 30,000 Hz |
| Nominal Impedance | 6 ohms |
| Dimensions | 322 x 583 x 326 mm |
| Weight | 18 kg (39 Ibs 10 oz) |
Do not place a turntable on top of the speaker cabinet or on the same shelf, as vibrations may cause howling.
Connect the red terminal (+) to the RED LINE and the black terminal (-) to the BLACK LINE of the speaker cord.
The sound will sound unnatural with little bass.
Pull the upper two corners towards you with both hands, then detach the bottom.
