This document provides information about the Yamaha NS-P30 speaker system, including precautions and features of the NX-E70 and NX-C70 speakers.

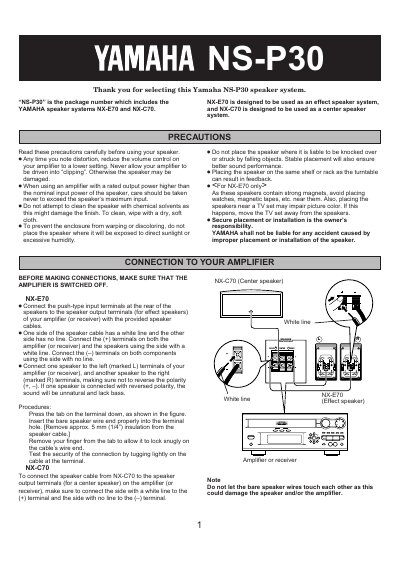

The Yamaha NS-P30 is a package number that includes two distinct speaker systems: the NX-E70 designed as an effect speaker system and the NX-C70 designed as a center speaker system. This manual covers precautions for use, connection procedures to amplifiers or receivers, and mounting instructions for both models.
| Speaker Type (NX-C70) | Full Range Speaker System (Magnetic-Shielding Type) |
|---|---|
| Driver Size (NX-C70) | 9cm (3-9/16") full range speaker |
| Frequency Range (NX-C70) | 100 — 20,000 Hz |
| Frequency Range (NX-E70) | 110 — 20,000 Hz |
| Dimensions (NX-C70) | 280 x 123 x 140 mm |
| Dimensions (NX-E70) | 200 x 115 x 105 mm |
| Weight (NX-C70) | 1.5 kg |
The NS-P30 package includes the NX-E70 and NX-C70 speaker systems.
Connect the side of the cable with a white line to the (+) terminal and the side with no line to the (-) terminal.
The dimensions for the NX-E70 are 200 x 115 x 105 mm (7-7/8" x 4-1/2" x 4-1/8").
