NS-P300 is a home cinema speaker from YAMAHA, which uses Active Servo Technology to deliver immersive sound.

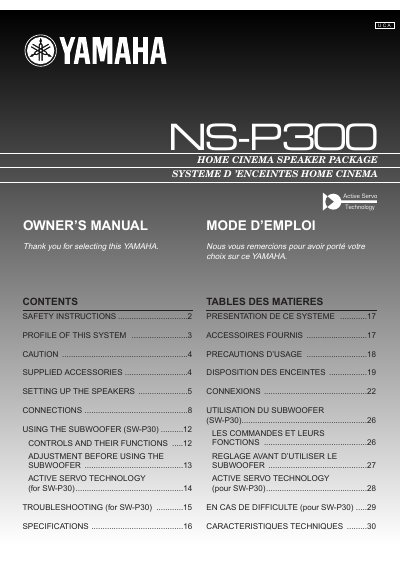

This Owner's Manual provides instructions for the Yamaha NS-P300 home cinema speaker package. The system includes main speakers (NS-M103), a center speaker (NS-C103), effect speakers (NS-E103), and a subwoofer system (SW-P30) designed for multi-channel audio applications like home theaters.
The manual details safety precautions, setup procedures, and connection methods for the speakers. It also explains the functions of the subwoofer controls, including the Active Servo Technology, HIGH CUT switch, and AUTO STANDBY switch, along with troubleshooting steps and technical specifications.
| Main speakers type | 2-way acoustic-suspension speaker system |
|---|---|
| Center speaker type | 2-way 3-speaker bass-reflex speaker system |
| Effect speakers type | Full-range bass-reflex speaker system |
| Subwoofer type | Active Servo Processing Subwoofer System |
The package includes a pair of main speakers (NS-M103), a center speaker (NS-C103), a pair of effect speakers (NS-E103), and a subwoofer system (SW-P30).
The subwoofer can be connected to either the speaker terminals or the line output (pin jack) terminals of the amplifier.
The HIGH CUT switch provides two positions (HIGH and LOW) to adjust the tone balance between the subwoofer and the main speakers.
