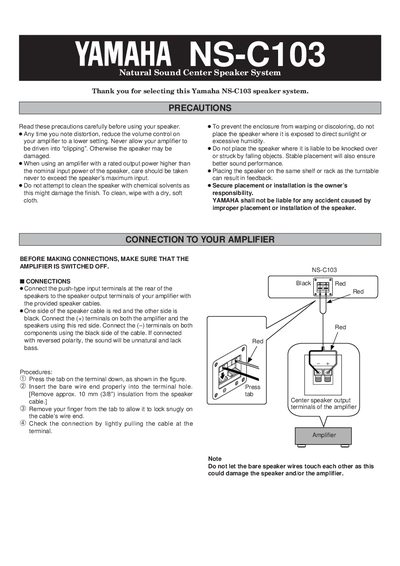

The Yamaha NS-C103 is a speaker system with the following precautions: avoid distortion, do not exceed the maximum input power, do not use chemical solvents for cleaning, avoid direct sunlight and excessive humidity, stable placement, avoid placing it with a turntable, secure installation, switch off the amplifier before making connections.
The Yamaha NS-C103 is a 2-way 3-speaker bass-reflex center channel speaker system designed for home theater setups. It features an 8 cm cone woofer and a 2.2 cm semi-dome tweeter, offering a frequency response from 65 Hz to 20 kHz. The system is a magnetic-shielding type, allowing safe placement near televisions without interference.
| System Type | 2-way 3-speaker bass-reflex speaker system |
|---|---|
| Woofer | 8 cm cone woofer x 2 |
| Tweeter | 2.2 cm semi-dome tweeter |
| Frequency Response | 65 Hz — 20 kHz |
| Maximum Input Power | 120 W |
| Sensitivity | 89 dB/W-m |
| Dimensions (WxHxD) | 435 x 100 x 230 mm |
Connect the red side of the cable to the (+) terminals and the black side to the (-) terminals on both the amplifier and the speakers.
Yes, but you must use the provided slip-prevention pads at two points on the bottom to prevent it from falling.
Yes, it is a magnetic-shielding type, though some influence on a TV picture may still occur depending on the TV type and placement.
