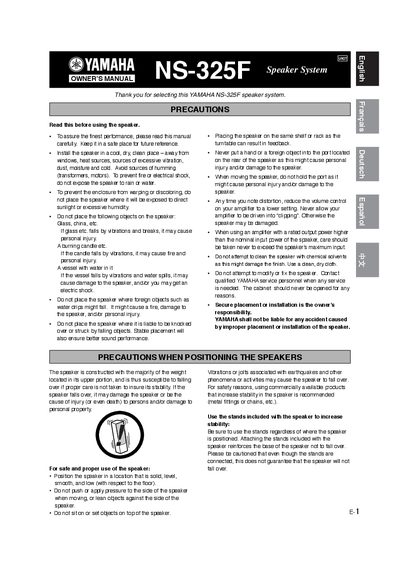

This is the NS-325F speaker system owner's manual
The Yamaha NS-325F is a 2-way bass reflex speaker system featuring a 13 cm cone woofer and a 1 inch dome tweeter. It includes magnetic shielding to prevent interference with nearby electronics, such as televisions.
This document covers safety precautions regarding placement and handling, instructions for attaching the included stability stands, wiring connections to an amplifier or receiver using screw-type terminals or banana plugs, and guidelines for positioning the speakers in stereo or multi-channel setups.
| System Type | 2-way bass reflex speaker system |
|---|---|
| Woofer Size | 13 cm (5") cone woofer x 2 |
| Tweeter Size | 3m (1) dome tweeter |
| Impedance | 62 ohms |
| Frequency Response | 40 Hz to 50 KHz (-10dB) |
| Nominal Input Power | 60 W |
| Maximum Input Power | 200 W |
| Sensitivity | 88 dB/2.83 Vim |
| Crossover Frequency | 2.5 kHz |
| Dimensions (WxHxD, with stand) | 304 x 984 x 326mm |
| Weight | 16 kg (35 Ibs.5 02.) |
Place the speaker in a cool, dry, clean place away from windows, heat sources, dust, moisture, and cold. Do not expose it to rain or water.
Use two 6mm screws for the outside holes on the base and two 4mm wood screws for the other holes. Attach pads to the bottom of the stand ends.
Connect the (+) terminals on the amplifier and speakers using one side of the cable, and the (-) terminals using the other side. Ensure correct polarity.
Yes, hold on to both sides and slowly pull straight away from the speaker. To reattach, line up the six holes with the corresponding pegs and push gently.
