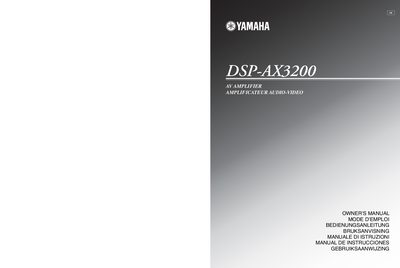

DSP-AX3200 GB AV AMPLIFIER is the user manual of DSP speaker's model AX3200 GB AV AMPLIFIER. It introduces the use methods and precautions of the product.
This manual provides instructions for the Yamaha DSP-AX3200, a 6-channel power amplifier featuring built-in digital sound field processing. It covers safety precautions, unboxing, and initial setup including battery installation for the remote control and connecting speakers and audio/video components. The guide details how to configure speaker modes, adjust levels, and utilize the On-Screen Display (OSD) for system optimization.
| Minimum RMS Output Power (0.02% THD, 20 Hz - 20 kHz, 8Ω) | Main: 120 W+120 W, Center: 120 W, Rear: 120 W+120 W, Rearcenter: 120 W |
|---|---|
| D/A Converter Resolution | 96-kHz/24-bit |
| Number of Speaker Modes | 14 Items |
The unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if turned off.
Remove the batteries for more than 3 minutes or leave exhausted batteries in the remote control.
BASS, TREBLE, and BASS EXTENSION are bypassed, eliminating any alteration of the original signal.
