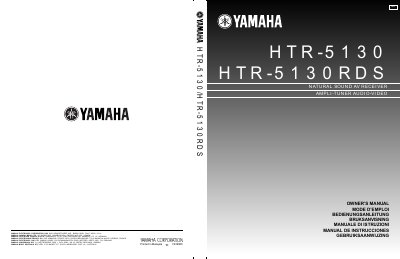

YAMAHA HTR-5130/HTR-5130ORDS user manual

This is a user manual for YAMAHA HTR-5130 HTR-5130RDS NATURAL SOUND AV RECEIVER AMPLI-TUNER AUDIO-VIDEO

Brand: Yamaha
Category: Player
Document type: User Manual
Language: English
Pages: 42
File format: PDF
File size: 552 KB
Published: 08 June, 2012
Updated: 30 September, 2023
Model: HTR-5130
MD5 checksum: E847C988A190A07D94EBF5F9946B1869
PDF: YAMAHA HTR-5130/HTR-5130ORDS user manual PDF

About this manual

This Owner's Manual covers the Yamaha HTR-5130 and HTR-5130RDS Natural Sound AV Receivers. It details the supplied accessories, including indoor FM and AM loop antennas, and explains the features such as the 5-speaker configuration, Dolby Pro Logic Surround Decoder, and CINEMA DSP technology. The document includes specific instructions for the HTR-5130RDS model regarding RDS broadcast functions.

What's inside

Supplied Accessories
Features
Caution
Speaker Setup
Controls and Their Functions
Speaker Balance Adjustment
Basic Operations
Tuning Operations
Using Digital Sound Field Processor
Troubleshooting

Specifications

Main Output Power	60W + 60W (8Q) RMS Output Power
Center Output Power	60W (8Q) RMS Output Power
Rear Output Power	60W + 60W (8Q) RMS Output Power
THD	0.04%
Frequency Response	20-20,000 Hz
Remote Control Range	Approximately 6 m (19.7 feet)

Frequently asked questions

What batteries are required for the remote control?

The remote control requires AA, R6, or UM-3 batteries.

How far is the effective range of the remote control?

The remote control operates within approximately 6 meters or 19.7 feet.

What should be done if the remote control range decreases?

Replace both batteries with new ones when the operating range decreases.
