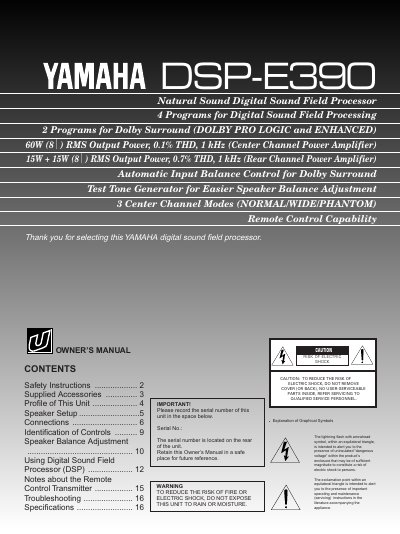

Yamaha DSP-E390 Owner's Manual

This manual is the owner's manual for the YAMAHA natural sound digital sound field processor

Brand: Yamaha
Document type: User Manual
Language: English
Pages: 16
File format: PDF
File size: 247 KB
Published: 08 June, 2012
Updated: 30 September, 2023
MD5 checksum: 4C76A3D61BF947489289DE7D68538352
PDF: Yamaha DSP-E390 Owner's Manual PDF

About this manual

The Yamaha DSP-E390 is a Natural Sound Digital Sound Field Processor designed to enhance audio playback. It features four programs for digital sound field processing and two programs for Dolby Surround (Dolby Pro Logic and Enhanced). The unit includes built-in power amplifiers with 60W RMS output for the center channel and 15W + 15W RMS for rear channels, along with automatic input balance control.

What's inside

Safety Instructions
Supplied Accessories
Speaker Setup
Connections
Identification of Controls
Speaker Balance Adjustment
Using Digital Sound Field Processor (DSP)
Notes about the Remote Control Transmitter
Troubleshooting
Specifications

Specifications

Center Channel Power Amplifier Output	60W (8Q) RMS, 0.1% THD at 1 kHz
Rear Channel Power Amplifier Output	15W + 15W (80) RMS, 0.7% THD at 1 kHz
Center Channel Modes	NORMAL/WIDE/PHANTOM

Frequently asked questions

What is the RMS output power of the rear channel power amplifier?

The rear channel power amplifier provides 15W + 15W RMS output power at 0.7% THD and 1 kHz.

How many center channel modes are available on this unit?

The unit offers three center channel modes: NORMAL, WIDE, and PHANTOM.
