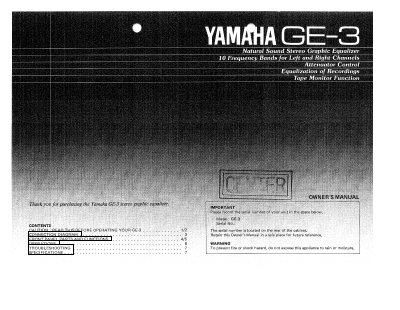

The Yamaha GE-3 is a stereo graphic equalizer featuring 10 frequency bands for both left and right channels. It includes functions such as an attenuator control, recording equalization, and a tape monitor feature to facilitate audio adjustments during playback or recording sessions.
The document details the front panel controls, including specific instructions for adjusting bass, mid-range, and treble frequencies using sliding levers. It also covers safety precautions, connection diagrams for linking with amplifiers or receivers, and troubleshooting common operating errors.
| Frequency Bands | 10 Frequency Bands for Left and Right Channels |
|---|---|
| Voltage Requirements | 110-120 V/220-240 V, AC 50/60 Hz |
| Power Consumption | Up to 400 W per appliance |
Slide the 32 Hz, 64 Hz, or 125 Hz levers up to boost sounds like bass violins or drums, and down to reduce rumble.
When ON, a connected tape deck plays back even during recording; when OFF, other music sources are played.
Use the ATT control (attenuator) to reduce volume while retaining the equalized signal.
