This document describes the features and characteristics of the ADA1108P model, including an 8 diode array, standard 16 pin dual-in-line package, UL 94V-0 flammability classification, etc.

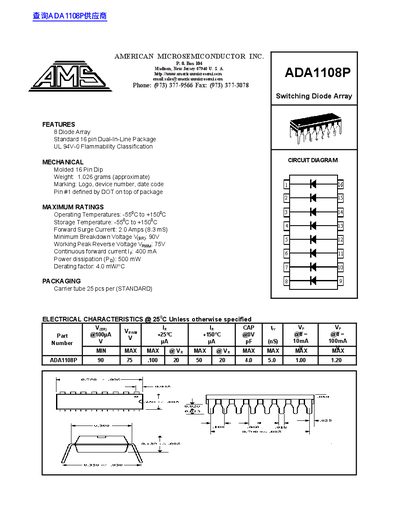

This document is a datasheet for the ADA1108P, an 8-diode array manufactured by American Microsemi. It is available in a standard 16-pin dual-in-line package (DIP) and is designed for switching applications.
The datasheet provides maximum ratings such as an operating temperature range of -55°C to +150°C and a continuous forward current of 400 mA. It also lists key electrical characteristics including reverse leakage current, capacitance, and switching times at various temperatures.
| Diode Array Count | 8 Diode Array |
|---|---|
| Package Type | Standard 16 pin Dual-In-Line Package |
| Operating Temperature | -55°C to +150°C |
| Forward Surge Current | 2.0 Amps |
| Continuous Forward Current | 400 mA |
| Power Dissipation | 500 mW |
| Reverse Leakage Current (Max) | 100 pA |
The ADA1108P is an 8 diode array.
The maximum operating temperature is +150°C.
The continuous forward current is 400 mA.
