ADA1107P is a switching diode array produced by American Microsemi. It has 8 diodes, a working temperature range of -55°C to +150°C, a maximum current of 2.0 amps and a maximum reverse voltage of 75V.

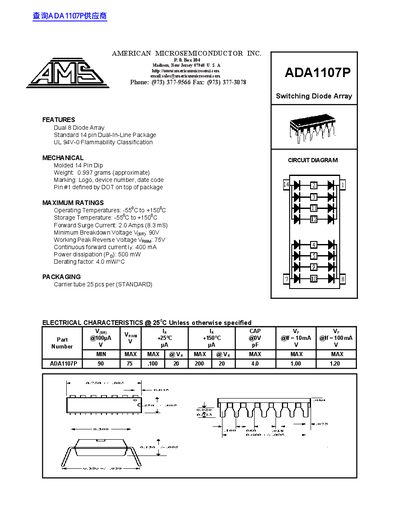

This document is a datasheet for the American Microsemi ADA1107P, a switching diode array. The device features a dual 8 diode array configuration and is available in a standard 14-pin dual-in-line package (DIP). It is designed for operation within a temperature range of -55°C to +150°C.
| Package Type | Standard 14 pin Dual-In-Line Package |
|---|---|
| Operating Temperature | -55°C to +150°C |
| Forward Surge Current | 2.0 Amps (8.3 mS) |
| Minimum Breakdown Voltage | 90V |
| Working Peak Reverse Voltage | 75V |
| Continuous forward current | 400 mA |
| Power dissipation | 500 mW |
| Derating factor | 4.0 mW/°C |
The ADA1107P is a dual eight diode array.
The molded fourteen pin dip weighs approximately 0.997 grams.
