ADA1103 is a 16 channel diode array produced by American Microsemi Corporation. The maximum operating temperature is -55℃ to 150℃, the maximum operating voltage is 100V, the maximum operating current is 400mA, and the maximum power consumption is 500mW.

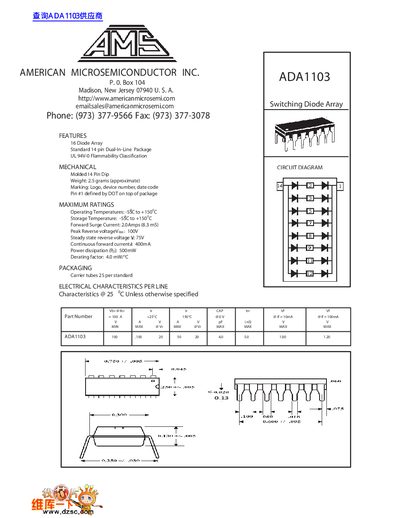

This document is a datasheet for the American Microsemi ADA1103, a switching diode array. The device is housed in a standard 14-pin dual-in-line package and features a 16-diode array configuration. It is designed for operation within a temperature range of -58°C to +150°C and includes specific electrical characteristics such as a peak reverse voltage of 100V and a continuous forward current of 400mA.
The datasheet provides detailed mechanical specifications, including package dimensions and weight, as well as packaging information indicating carrier tubes of 25 per standard. It also lists maximum ratings for operating temperatures, surge current, and power dissipation, along with a circuit diagram and a table of electrical characteristics per line.
| Diode Array Count | 16 Diode Array |
|---|---|
| Package Type | Standard 14 pin Dual-In-Line Package |
| Operating Temperature | -58C to +150°C |
| Peak Reverse Voltage | 100V |
| Continuous Forward Current | 400mA |
| Power Dissipation | 500mW |
| Weight | 2.5 grams |
The device operates between -58C and +150°C, with a storage range of -55C to +150°C.
The maximum continuous forward current is 400mA.
