This file is preliminary technical data, which introduces the following content: 1. Product introduction; 2. System composition; 3. System function; 4. Technical scheme; 5. Key technology; 6. System performance; 7. System application.

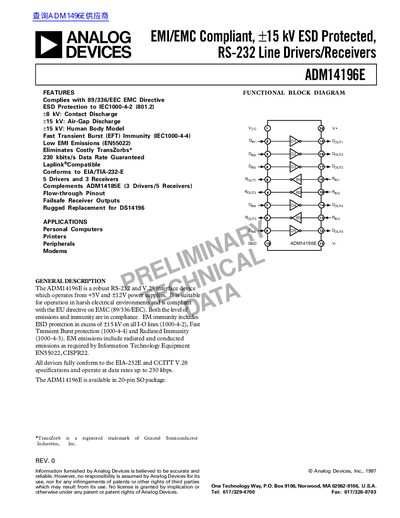

The ADM14196E is a robust RS-232 interface device designed to operate from +5V and +12V power supplies. It features compliance with the EU directive on EMC (89/336/EEC) and includes ESD protection exceeding ±15 kV on all I/O lines according to IEC 1000-4-2 standards.
| Data Rate | 230 kbits/s |
|---|---|
| ESD Protection (I/O Pins) | ±15 kV |
| Package Type | 20-pin SOIC |
| Operating Temperature Range (Industrial) | -40°C to +85°C |
The device guarantees a data rate of 230 kbits/s.
Yes, it complies with the EU directive on EMC (89/336/EEC).
The device provides ±15 kV protection for air-gap discharge.
