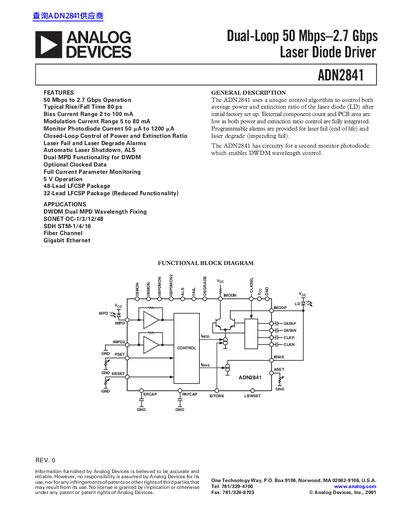

The ADN2841 is a dual-loop 50 Mbps to 2.7 Gbps optical transmitter with closed-loop power and extinction ratio control, automatic laser shutdown (ALS), DWDM dual MPD functionality, optional clocked data, full current parameter monitoring and more
The ADN2841 is a dual-loop laser diode driver capable of operating at speeds from 50 Mbps to 2.7 Gbps. It utilizes a unique control algorithm to manage both average power and extinction ratio of the laser diode after initial factory setup, minimizing external component count. The device includes programmable alarms for laser fail and laser degrade conditions, as well as circuitry for a second monitor photodiode to enable DWDM wavelength control.
| Operating Speed Range | 50 Mbps to 2.7 Gbps |
|---|---|
| Typical Rise/Fall Time | 80 ps |
| Bias Current Range | 2 to 100 mA |
| Modulation Current Range | 5 to 80 mA |
| Supply Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Types | 48-Lead LFCSP, 32-Lead LFCSP |
The device operates at speeds from 50 Mbps to 2.7 Gbps.
Yes, it has circuitry for a second monitor photodiode which enables DWDM wavelength control.
The device is available in 48-Lead LFCSP and 32-Lead LFCSP packages.
