L-403ED is a red LED lamp with a wavelength of 635nm and a viewing angle of 120 degrees.

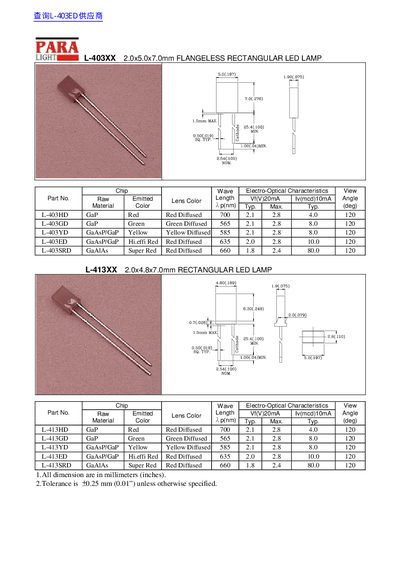

This document provides technical specifications for the PARA L-403XX and L-413XX series of flangeless rectangular LED lamps. It includes dimensional drawings and electro-optical characteristic tables for various part numbers, covering raw emitted color, lens color, material, forward voltage, and viewing angle.
| Dimensions (L-403XX) | 2.0x5.0x7.0mm |
|---|---|
| Dimensions (L-413XX) | 2.0x4.8x7.0mm |
| Tolerance | ±0.25 mm (0.01") |
| Part No. L-403HD | GaP Red Diffused |
| Part No. L-403GD | GaP Green Diffused |
| Part No. L-403YD | GaAsP/GaP Yellow Diffused |
| Part No. L-403ED | GaAsP/GaP Hi.effi Red Diffused |
| Part No. L-403SRD | GaAlAs Super Red Diffused |
| Part No. L-413HD | GaP Red Diffused |
| Part No. L-413GD | GaP Green Diffused |
| Part No. L-413YD | GaAsP/GaP Yellow Diffused |
| Part No. L-413ED | GaAsP/GaP Hi.effi Red Diffused |
| Part No. L-413SRD | GaAlAs Super Red Diffused |
The L-403XX lamp measures 2.0x5.0x7.0mm.
The L-413XX lamp measures 2.0x4.8x7.0mm.
The lens height must be 1.5mm maximum.
