The document provides information on the dimensions, parameters, and electro-optical characteristics of the L-314EIR1BC supplier PL-IRM0101-3 receiver module B-2.

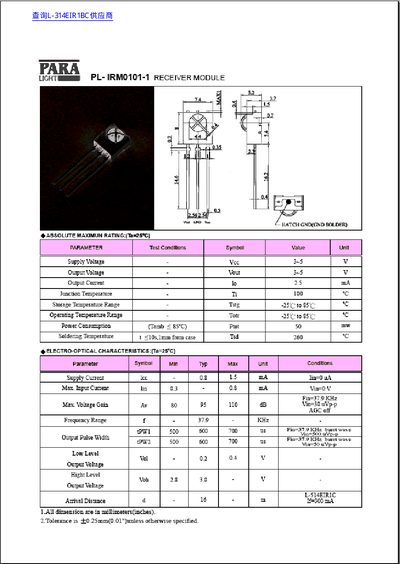

This document is a technical datasheet for the PARA brand's infrared receiver modules. It provides detailed specifications for multiple models within the series, including the PL-IRM0101-1, PL-IRM0204-A538, PL-IRM0206-A538, and PL-IRM0208-A538.
The datasheet lists absolute maximum ratings such as supply voltage (4.5~5.5 V) and operating temperature ranges (-25°C to 85°C). It also includes electro-optical characteristics like frequency range (centered around 37.9-38.0 KHz), output pulse width, and arrival distance.
| Supply Voltage | 4.5~5.5 V |
|---|---|
| Operating Temperature Range | -25°C to 85°C |
| Power Consumption | 50 mw |
| Frequency Range | 37.9 KHz to 38.0 KHz |
The module consumes 50 mW when the ambient temperature is 85°C.
The unit operates between -25°C and 85°C and can be stored from -25°C to 85°C.
The typical maximum voltage gain is 53 dB when the input voltage is 30 uVp-p.
