C/A-1501X, C/A-1505X SINGLE DIGIT DISPLAY is the enhanced version of C/A-1501X. It has the same electro-optical characteristics, external dimensions and package as C/A-1501X, but has higher luminous efficiency. Red LED is GaAsP/GaP, green LED is GaP, yellow LED is GaAsP/GaP, and super red LED is GaAlAs. The emission wavelengths are 635nm, 565nm, 585nm and 660nm respectively.

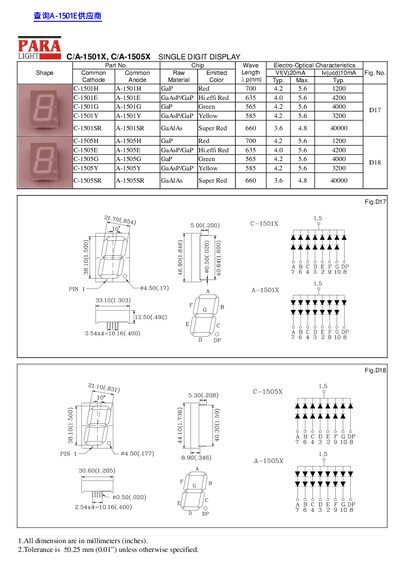

This handbook provides the electro‑optical characteristics of the PARA C/A-1501X and C/A-1505X single digit displays, including material, color, wavelength, voltage and current specifications for each part number. The data are presented in a compact table for quick reference.
Mechanical information such as overall dimensions, pin layout and tolerance values are also included. All dimensions are given in millimetres with a standard tolerance of +0.25 mm unless otherwise noted.
The tolerance is +0.25 mm (0.01 ”) unless otherwise specified.
All dimensions are expressed in millimetres (inches).
