This document describes the electro-optical characteristics of the C/A-3880X 1.2 inch, 8 x 8 dot matrix display, including emission wavelength, voltage, and brightness for different colors.

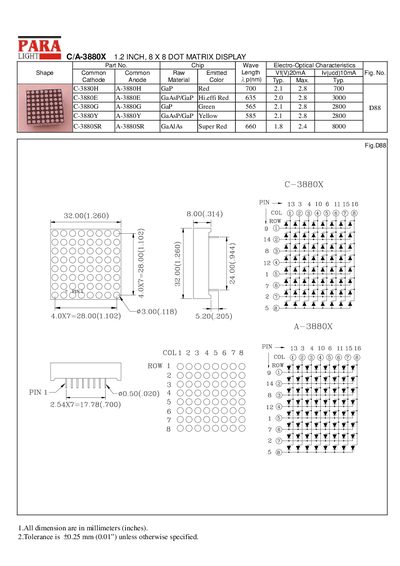

The PARA C/A-3880X is a 1.2‑inch, 8 × 8 dot matrix display available in several colors. The datasheet provides the electro‑optical characteristics, mechanical dimensions and tolerance information for the device.
Key specifications include forward voltage at 20 mA, typical current, and color options. All dimensions are given in millimetres with a tolerance of ±0.25 mm unless otherwise noted.
| Display size | 1.2 inch |
|---|---|
| Resolution | 8 × 8 dots |
| Dimension tolerance | ±0.25 mm (±0.01 in) |
All dimensions are provided in millimetres (inches).
The tolerance is +0.25 mm (0.01 in) unless otherwise specified.
