This document provides detailed information about C/A-303X, C/A-363X THREE DIGITS DISPLAY, including name, package, current-voltage characteristics, emitted wavelength, etc.

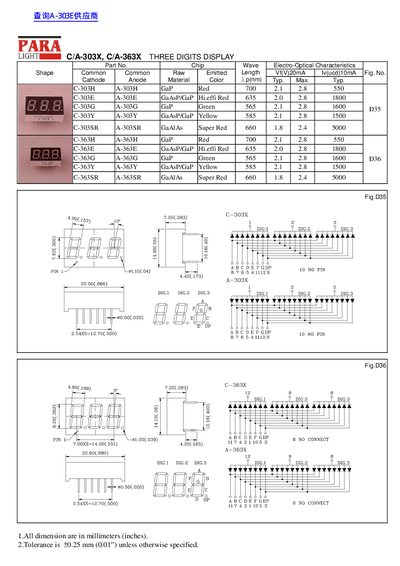

This datasheet provides the electro‑optical characteristics for PARA three‑digit display modules C/A-303X and C/A-363X. It lists part numbers, peak wavelengths, material types and typical forward voltage values for each color variant.
Mechanical information includes the overall dimensions (in millimetres) and the tolerance of +0.25 mm (0.01 in) unless otherwise noted, as well as detailed pin assignments for each display version.
| C-303H peak wavelength | 700 nm |
|---|---|
| C-303E peak wavelength | 635 nm |
| C-303G peak wavelength | 565 nm |
| C-303SR peak wavelength | 660 nm |
All dimensions are given in millimetres (inches).
The tolerance is +0.25 mm (0.01 in) unless otherwise specified.
