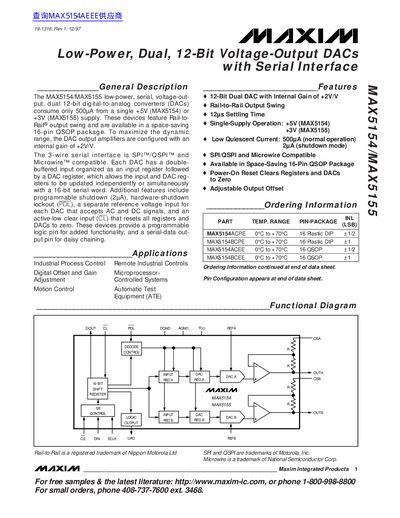

The MAX5154/MAX5155 are low-power, serial, voltage-output, dual 12-bit digital-to-analog converters (DACs) that consume only 500µA from a single +5V (MAX5154) or +3V (MAX5155) supply. These devices feature Rail-to-Rail® output swing and are available in a space-saving 16-pin QSOP package. To maximize the dynamic range, the DAC output amplifiers are configured with an internal gain of +2V/V. The 3-wire serial interface is SPI™/QSPI™ and Microwire™ compatible. Each DAC has a double-buffered input organized as an input register followed by a DAC register, which allows the input and DAC reg- isters to be updated independently or simultaneously with a 16-bit serial word. Additional features include programmable shutdown (2µA), hardware-shutdown lockout (PDL), a separate reference voltage input for each DAC that accepts AC and DC signals, and an active-low clear input (CL) that resets all registers and DACs to zero. These devices provide a programmable logic pin for added functionality, and a serial-data out- put pin for daisy chaining.
The MAX5154/MAX5155 are low-power, serial, voltage-output, dual 12-bit DACs that consume only 500µA from a single +5V or +3V supply. These devices feature Rail-to-Rail output swing and are available in a space-saving 16-pin QSOP package.
The 3-wire serial interface is SPI/QSPI and Microwire compatible. Each DAC has a double-buffered input organized as an input register followed by a DAC register, which allows the input and DAC registers to be updated independently or simultaneously with a 16-bit serial word.
| Resolution | 12 Bits |
|---|---|
| Quiescent Current | 500µA (MAX5154) |
| Package Type | 16-Pin QSOP |
| Interface Compatibility | SPI/QSPI and Microwire |
The devices have a resolution of 12 bits.
They consume only 500uA from their respective single +5V or +3V supplies.
The SCLK clock period must be at least 100 ns.
