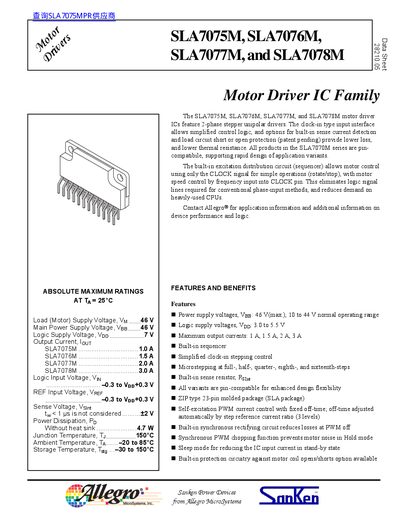

The Sanken Power Devices 28210.05 SLA7075M, SLA7076M, SLA7077M, and SLA7078M Motor Drivers are a family of 2-phase stepper unipolar drivers. They feature a clock-in type input interface that allows simplified control logic, and options for built-in sense current detection and load circuit short or open protection (patent pending) provide lower loss and lower thermal resistance. All products in the SLA7070M series are pin-compatible, supporting rapid design of application variants. The built-in excitation distribution circuit (sequencer) allows motor control using only the CLOCK signal for simple operations (rotate/stop), with motor speed control by frequency input into CLOCK pin. This eliminates logic signal lines required for conventional phase-input methods, and reduces demand on heavily-used CPUs.
This document describes the SLA7075M, SLA7076M, SLA7077M, and SLA7078M motor driver ICs, which are 2-phase stepper unipolar drivers. The family features a clock-in type input interface for simplified control logic and includes options for built-in sense current detection and load circuit short or open protection. All products in the series are pin-compatible, supporting rapid design of application variants.
| Load (Motor) Supply Voltage | 46V max, 10 to 44V normal |
|---|---|
| Main Power Supply Voltage | 46V max |
| Logic Supply Voltage | 3.0 to 5.5 V |
| Maximum Output Currents | 1 A, 1.5A, 2A, 3A |
| Package Type | 23-pin molded package (SLA package) |
| Maximum Response Frequency | 250 kHz |
| Ambient Temperature Range | -20 to 85°C |
| Sense Resistor Tolerance | +3 % |
The series offers maximum output currents of 1 A, 1.5 A, 2 A, and 3 A.
Yes, it supports microstepping at full-, half-, quarter-, eighth-, and sixteenth-steps.
They use a ZIP type 23-pin molded package, also known as the SLA package.
