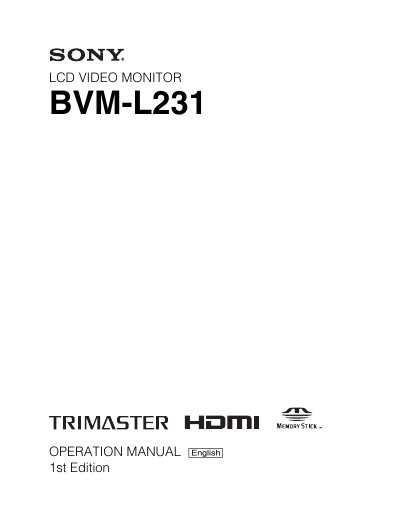

This document is the first edition of the operation manual for the BVM-L231 LCD video monitor. The manual includes precautions for using the monitor, such as avoiding exposure to rain or moisture, and not opening the cabinet to prevent electrical shock. It also advises users to ensure the apparatus is properly grounded and easily accessible. The document mentions that the equipment complies with FCC rules for Class A digital devices and provides guidance on avoiding interference when operating in a commercial environment.
The Sony BVM-L231 is a professional LCD video monitor featuring TruMaster technology. This Operation Manual covers safety precautions, installation procedures including rack mounting and LAN connections, and detailed instructions for using the on-screen menu system to adjust display settings such as color temperature, brightness, and contrast.
The document also explains various operational modes like Picture & Picture and Pixel Zoom, how to connect external controllers (BKM-I6R), and provides troubleshooting guides. It includes comprehensive specifications regarding input signals, dimensions, and environmental requirements for proper installation.
| Technology | TruMaster Rooted Screen |
|---|
No, this apparatus shall not be used in the residential area.
The manual states that the internal air ambient temperature of the rack must be within the specified limit of the product, but it does not state that specific temperature value.
The manual requires a space of 4.4 cm (or inches) or more between the monitor and the wall.
This monitor is designed to operate at 120 V.
