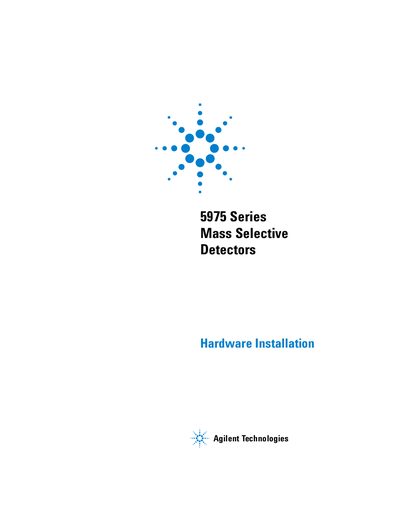

Agilent 5975 Series Mass Selective Detectors Hardware Installation Manual

About this manual

This manual provides comprehensive hardware installation instructions for the Agilent Technologies 5975 Series Mass Selective Detectors (MSDs). It details the necessary steps for unpacking, installing the GC connection, configuring the vacuum system, and plumbing the methane line. The document emphasizes that installation must be performed by an authorized service representative due to safety hazards involving dangerous voltages and hot parts.

What's inside

• Important Safety Warnings
• Safety and Regulatory Certifications
• Unpacking and Inspecting Materials
• Installing the GC
• Connecting Helium Lines
• Configuring the GC
• Preparing the Vacuum System
• Plumbing the Methane Line
• Verifying EI System Performance
• Switching to CI Operating Mode

Specifications

Frequently asked questions

Who is authorized to perform the installation?

Installation must be performed by an Agilent Technologies service representative.

What type of pump does the MSD use?

The 5975 Series Mass Selective Detectors are turbo pump MSDs.

Is a High Vacuum Gauge controller required for CI operation?

Yes, the Optional G3397A High Vacuum Gauge controller is required for CI operation.
