The HLMP-WLxx, HLMP-NL06, HLMP-WHxx, HLMP-NH04, HLMP-WGxx, and HLMP-NG07 are a family of high intensity AlInGaP LED lamps designed for applications requiring higher levels of intensity than is achieved with a standard lamp. The lamps are available in T-1 (3 mm) and T-1 3/4 (5 mm) sizes with clear and tinted diffused lens options. 15, 30, and 65 degree viewing angle options are available for the 5 mm lamp, while the 3 mm lamp is available with a 60 degree viewing angle.

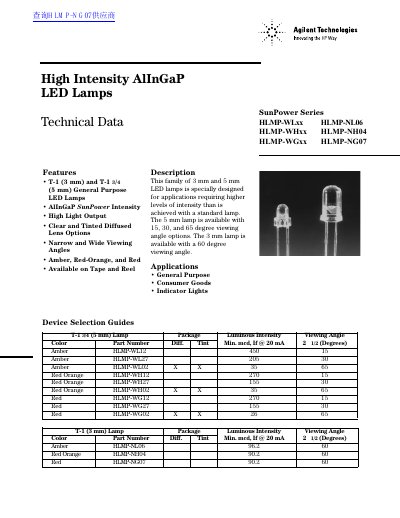

This datasheet details the technical specifications of Agilent's high-intensity AlInGaP LED lamps, available in 3mm and 5mm packages with various viewing angles and color options. The lamps are designed for applications requiring higher intensity than standard lamps, with specific luminous intensity, forward voltage, and thermal resistance values provided. The document includes electrical and optical characteristics, package dimensions, and derating curves for temperature and current.
| Luminous Intensity (Amber) | 450 mcd @ 20 mA |
|---|---|
| Luminous Intensity (Red) | 270 mcd @ 20 mA |
| Viewing Angle (3mm) | 60 degrees |
| Forward Voltage (Red) | 1.90 V |
| Peak Wavelength (Red) | 635 nm |
| Thermal Resistance (5mm) | 240 °C/W |
The 5mm lamp is available with 15, 30, and 65 degree viewing angle options.
The peak wavelength for the red LED is 635 nm.
The maximum forward current for 3mm lamps is 30 mA.
The thermal resistance for 5mm lamps is 240 °C/W.
