The PV15 series compact 15 watt enclosed switching power supplies from ASTRODYNE USA feature high efficiency, regulated outputs, and built-in EMI filters.

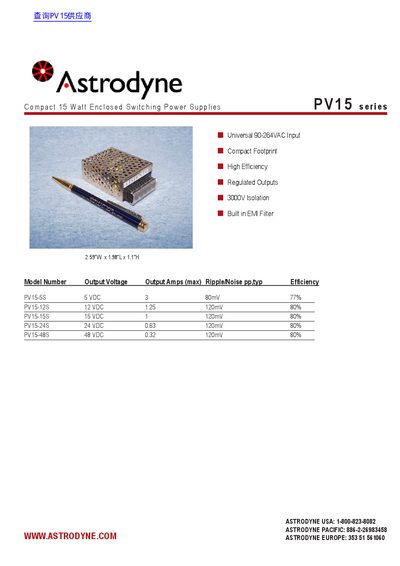

The document describes the Astrodyne PV15 series, a line of compact 15 Watt enclosed switching power supplies. These units feature a universal AC/DC input range of 90-264 VAC / 125-370 VDC and provide regulated DC outputs ranging from 5V to 48V.
| Power Rating | 15 Watt |
|---|---|
| Input Voltage Range | 90-264 VAC / 125-370 VDC |
| Operating Temperature | -20 to +70°C |
| Isolation Voltage (VP-O/P) | 3000VAC |
| Dimensions | 2.59" x 1.98" x 1.1" |
| Weight | 0.275 lb (125g) |
The maximum output current is 3 amps.
It measures 2.59 inches by 1.98 inches by 1.1 inches.
The unit can operate up to +70°C.
