This product is a 200W quad output power supply with PFC function, rated voltage is 127-370VDC, rated current is 3.5A/115VAC, 2A/230VAC, working temperature is -10~+60℃, working humidity is 20~90%RH.

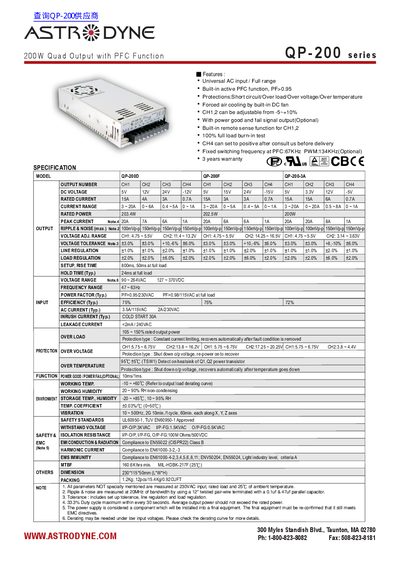

The Astrodyne QP-200 series provides a 200 W quad‑output power supply with built‑in active power factor correction (PFC) and a universal AC input range. It offers configurable output voltages, remote‑sense capability, and a range of protection features such as short‑circuit, overload, over‑voltage and over‑temperature protection.
Designed for industrial applications, the unit includes forced‑air cooling, a compact 230 × 115 × 50 mm enclosure, and compliance with safety standards UL‑60950‑1 and EN‑60950‑1. Detailed electrical specifications, mechanical dimensions, pin assignments, and derating curves are provided for system integration.
| Output Power | 200 W (typical) |
|---|---|
| Number of Outputs | 4 (quad) |
| Power Factor | ≥ 0.95 (typ.) |
| Efficiency | 75 % (typ.) |
| Operating Temperature | -10 ~ +60 °C |
| Dimensions (L×W×H) | 230 mm × 115 mm × 50 mm |
| Weight | 4.2 kg |
The typical power factor is greater than 0.95 at 230 V AC.
It includes short‑circuit, overload, over‑voltage, and over‑temperature protection, plus optional power‑good/fail signals.
The enclosure measures 230 mm × 115 mm × 50 mm (L × W × H).
