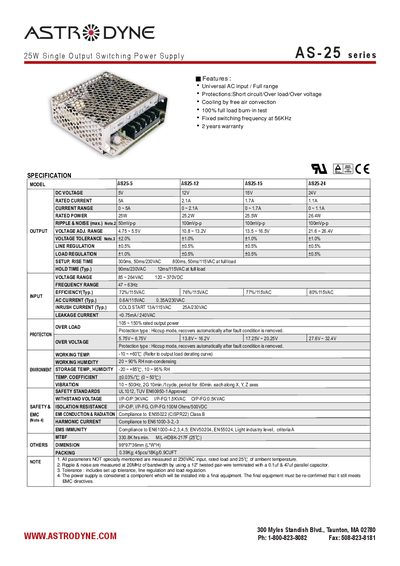

as-25 series 25w single output switching power supply is a switching power supply with a rated output power of 25w. It has a wide input voltage range of 85~264vac and a wide output voltage range of 12v/15v/24v. The efficiency is 72%/76%/77% at 115vac and 80% at 115vac. It has a low no-load power consumption of 0.6a/115vac and 0.35a/230vac. The product has a variety of safety certifications and is suitable for a wide range of applications.
The AS-25 series provides a compact 25 W switching power supply with a universal AC input range and free‑air convection cooling. It offers short‑circuit, overload and over‑voltage protection, a fixed 56 kHz switching frequency, and a two‑year warranty.
Technical specifications include selectable output voltages from 4.75 V to 26.4 V, input voltage ranges of 85‑264 VAC (120‑370 VDC), efficiencies up to 80 %, and compliance with UL1012, EN60950‑1 and EMC standards. The unit operates from –10 °C to +60 °C and measures 99 × 97 × 36 mm.
| Rated Power | 25 W |
|---|---|
| Input Voltage Range | 85 ~ 264 VAC (120 ~ 370 VDC) |
| Output Voltage Adjustable Range | 4.75 ~ 5.5 V / 10.8 ~ 13.2 V / 13.5 ~ 16.5 V / 21.6 ~ 26.4 V |
| Switching Frequency | 56 kHz |
| Protection Types | Short‑circuit, overload, over‑voltage, hiccup mode |
| Operating Temperature | -10 °C to +60 °C |
| Dimensions | 99 × 97 × 36 mm (L × W × H) |
| Weight | 0.39 kg |
| Warranty | 2 years |
It accepts an input voltage from 85 V to 264 V AC (or 120 V to 370 V DC).
The unit provides short‑circuit, overload, over‑voltage protection and uses a hiccup‑mode recovery.
The power supply operates from –10 °C up to +60 °C.
