The Pmmk150-D series is a 150 watt medical grade power supply with DIN rail mount and PFC. This unit has a size of 3.2”W x 5.5”L x 1.6”H, 150 watts output power, single/dual outputs, 90-264VAC input, 5VDC to 48VDC outputs, 4000VAC input to output isolation and active power factor correction.

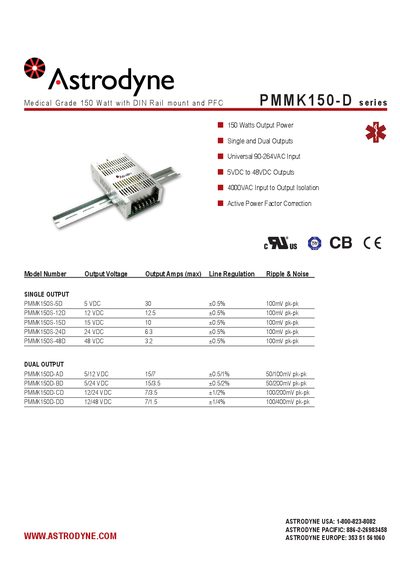

The document describes the Astrodyne PMMK150-D series, a medical-grade 150 Watt power supply featuring DIN rail mounting and Active Power Factor Correction (PFC). It supports universal input voltages from 90-264VAC and provides single or dual output configurations ranging from 5VDC to 48VDC.
| Output Power | 150 Watts |
|---|---|
| Input Voltage Range | 90-264 VAC |
| Output Isolation | 4000VAC |
| Power Factor Correction | Active PFC (0.96 to 0.98) |
| Operating Temperature | -10 to +70°C |
| MTBF | 270,000 Hrs |
| Efficiency | 75%, min. |
The PMMK150-D series provides a total output power of 150 Watts.
This power supply accepts an input voltage range of 90-264 VAC.
The unit weighs 1.4 lb, which is equivalent to 635g.
