The MC74LVX00 is a high-performance CMOS 2 input NAND gate from Motorola. It has a wide input voltage range of 0.5V to 7.0V and very low power consumption and noise.

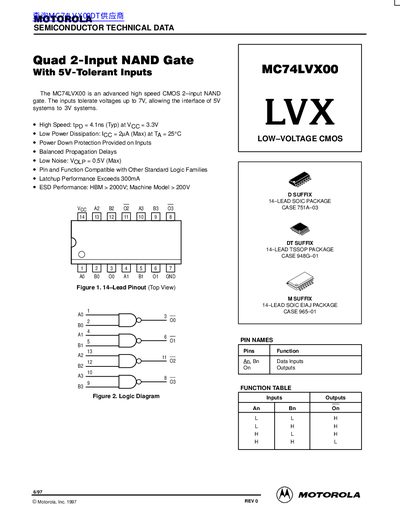

This document is a technical datasheet for the MC74LVX00, a high-speed CMOS quad 2-input NAND gate. The device features 5V-tolerant inputs, allowing the interface of 5V systems to 3V systems, and includes power-down protection on inputs. It is available in 14-lead SOIC, TSSOP, and SOIC EIAJ packages.
| Propagation Delay (Typical) | 4.1ns |
|---|---|
| Power Dissipation (Max) | 2A |
| DC Supply Voltage Range | -0.5 to +7.0 V |
| Operating Temperature | -40 to +85 °C |
| High-Level Input Voltage (Min) | 2.0 V |
| Input Capacitance | 10 pF |
The typical propagation delay is 4.1ns at a supply voltage of 3.3V.
Yes, the inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.
The maximum DC supply voltage is +7.0 V.
