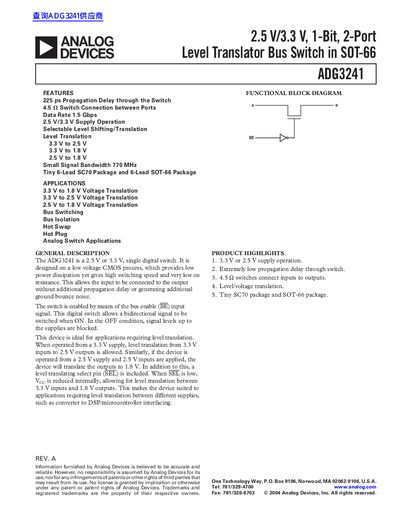

The ADG3241 is a 2.5 V or 3.3 V, single digital switch. It is designed on a low voltage CMOS process, which provides low power dissipation yet gives high switching speed and very low on resistance. This allows the input to be connected to the output with very low switching delay.
The ADG3241 is a 2.5 V or 3.3 V, single digital switch designed on a low voltage CMOS process to provide high switching speed and very low on resistance. It supports selectable level shifting/translation between different voltage systems, including 3.3 V to 2.5 V, 3.3 V to 1.8 V, and 2.5 V to 1.8 V.
| Propagation Delay | 225 ps |
|---|---|
| Data Rate | 1.5 Gbps |
| Supply Operation | 2.5 V/3.3 V |
| Package Types | SC70, SOT-66 |
| Operating Temperature (Industrial) | -40 °C to +85 °C |
It supports level translation from 3.3 V to 2.5 V, 3.3 V to 1.8 V, and 2.5 V to 1.8 V.
The ADG3241 is available in a 6-Lead SC70 Package and a 6-Lead SOT-66 Package.
