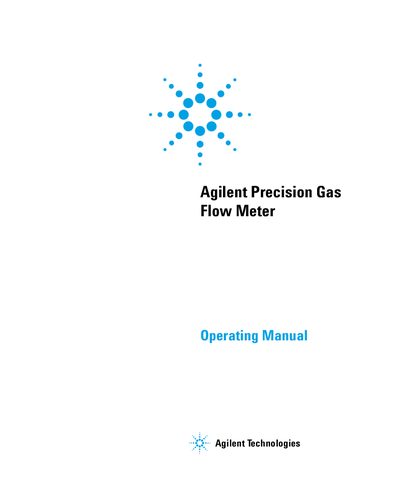

Agilent Precision Gas Flow Meter Operating Manual

About this manual

This document is the operating manual for the Agilent Precision Gas Flow Meter. It provides essential information on how to use the instrument safely and effectively, including specific cautions regarding gas types, environmental conditions, and electrical connections.

The manual advises users not to disassemble the meter or attempt unauthorized modifications, as it contains no user-serviceable components. It also directs users to a separate online Reference Manual (5973-1711) for detailed information on operating principles, RS-232 digital I/O, and technical data.

What's inside

• Notices
• Cautions for meter applications
• Cautions for meter installations
• Advice for meter operation
• Operating Manual

Frequently asked questions

What gases should not be flowed through this meter?

Do not flow corrosive gases such as ammonia, propylene, HCl, SO2, H2S, NOx, NOy, silane, or chlorine.

What is the minimum and maximum flow range for this meter?

The meter should not be used outside a range of 640 ml/min.

What happens if the meter is exposed to liquids?

The meter does not have a watertight electronics package and should not be exposed to liquids on its outer surface.
