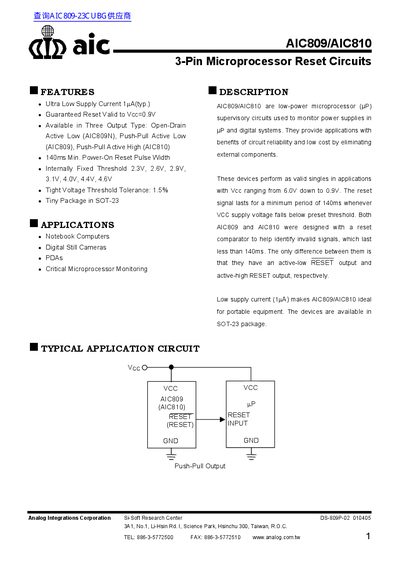

AIC809/AIC810 3-Pin Microprocessor Reset Circuits are low-power microprocessor (µP) supervisory circuits used to monitor power supplies in µP and digital systems.
The AIC809/AIC810 are low-power microprocessor (uP) supervisory circuits designed to monitor power supplies in uP and digital systems. These devices provide circuit reliability and low cost by eliminating external components, performing as valid resets with Vcc ranging from 6.0V down to 0.9V.
| Supply Current (Typ) | 1pA |
|---|---|
| Reset Valid Voltage | 0.9V |
| Power-On Reset Pulse Width (Min) | 140ms |
| Voltage Threshold Tolerance | 1.5% |
The only difference is that they have an active-low RESET output (AIC809) and active-high RESET output (AIC810), respectively.
These devices are available in the SOT-23 package.
