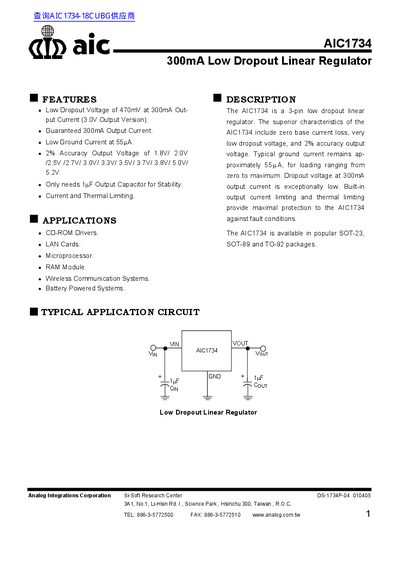

AIC AIC1734 DATA SHEET

Update: 30 September, 2023

The AIC1734 is a 3-pin low dropout linear regulator from Analog Integrations Corporation. It features zero base current loss, very low dropout voltage, and 2% accuracy output voltage. Typical ground current remains approximately 55µA, for loading ranging from zero to maximum. Dropout voltage at 300mA output current is exceptionally low. Built-in output current limiting and thermal limiting provide maximal protection to the AIC1734 against fault conditions. The AIC1734 is available in popular SOT-23, SOT-89 and TO-92 packages.

---

File format: PDF

Size: -

MD5 Checksum: E62CEF1F4EE91F34837621B4AF2E97B5

Publication date: 07 June, 2012

Downloads: -

PDF Link: AIC AIC1734 DATA SHEET PDF
