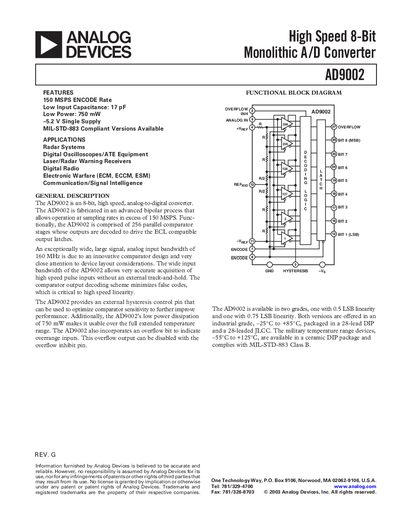

The AD9002 is a high-performance 8-bit analog-to-digital converter with a maximum sampling rate of 150MSPS.
The AD9002 is a high-speed, 8-bit monolithic analog-to-digital converter fabricated in an advanced bipolar process. It features a sampling rate exceeding 150 MSPS and supports a wide analog input bandwidth of 160 MHz, allowing accurate acquisition of high-speed pulse inputs without an external track-and-hold circuit.
| Resolution | 8 Bits |
|---|---|
| Encode Rate | 150 MSPS |
| Input Capacitance | 17 pF |
| Power Dissipation | 750 mW |
| Supply Voltage | -5.2 V Single Supply |
| Analog Input Bandwidth | 160 MHz |
Yes, MIL-STD-883 Compliant Versions are available.
The device provides an exceptionally wide, large signal analog input bandwidth of 160 MHz.
The converter has a low power dissipation of 750 mW.
The device operates with a -5.2 V single supply.
